Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V
Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V

Tablou Electric 48 Module, (Cofret) Neechipat, Montaj Aplicat, Alb, Usa Plastic Alb, 651x287x112mm, IP40, Class II, In63A, AC400V

În stoc
187.61 Lei
  • Codul produsului: 6885
  • SKU: N48CW
  • Brand: ELETTROCANALI
  • Culoare: Alb
  • Numar module: 48 module
  • Tensiune alimentare (V): 400 V
  • Tip material: ABS
  • Tip montaj: Aplicat
  • Clasa de protecție (IP): IP 40
  • Număr șine DIN: 4
  • Numar randuri: 4
  • Usa (material, culoare): Plastic, Alb
  • Borne N,PE: 2x20
Descriere Recenzii

Tablou electric modular pentru montaj aplicat, destinat organizarii si protectiei instalatiilor electrice de interior. Cofretul este livrat neechipat cu aparataj modular, permitand configurarea flexibila a circuitelor in functie de necesitatile instalatiei. Cu o capacitate generoasa de 48 module si 4 sine DIN, este potrivit pentru instalatii care necesita un numar mai mare de aparate modulare.

Caracteristici principale

  • Capacitate: 48 module

  • Montaj: aplicat

  • 4 sine DIN

  • Curent nominal: 63A

  • Tensiune nominala: AC 400V / DC 1000V

  • Grad de protectie: IP40

  • Clasa de protectie: Class II

  • Rezistenta la impact: IK07

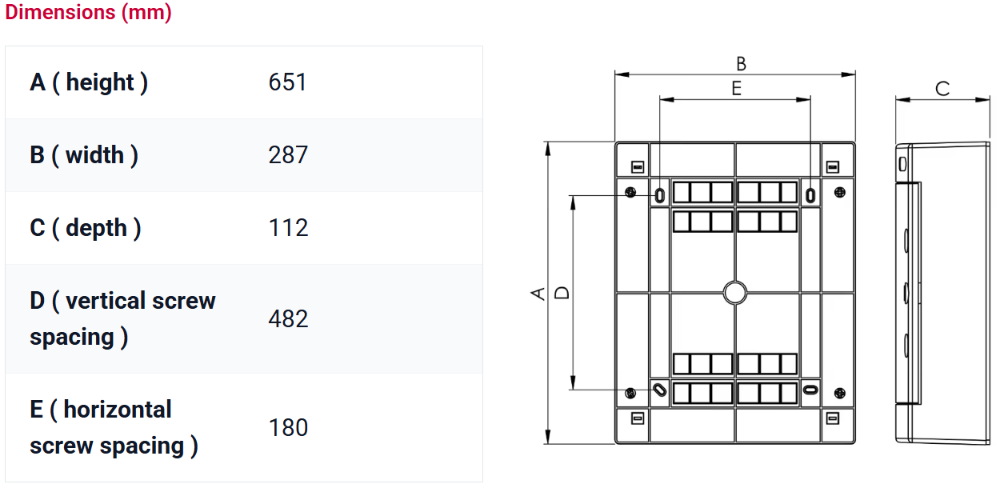

  • Dimensiuni: 651 x 287 x 112 mm

  • Usa din plastic alb

  • Borne N/PE: 2 x 20

  • Conform standardului IEC 62208

Constructie si materiale

Baza cofretului este realizata din PS, masca frontala din ABS RAL 9003, iar usa din material plastic, in configuratie alb. Suportul bornelor este realizat din material auto-stingator, contribuind la siguranta constructiei.

Pentru rezistenta termica, baza are un test cu fir incandescent de 650°C, iar suportul bornelor are un nivel de 960°C.

Protectie si utilizare

Tabloul este destinat utilizarii la interior, in intervalul de temperatura -25°C pana la +60°C. Gradul de protectie IP40 ofera protectie impotriva corpurilor solide, dar produsul nu este destinat instalarii in exterior sau expunerii directe la apa. Protectia Class II si rezistenta mecanica IK07 completeaza caracteristicile de protectie ale cofretului.

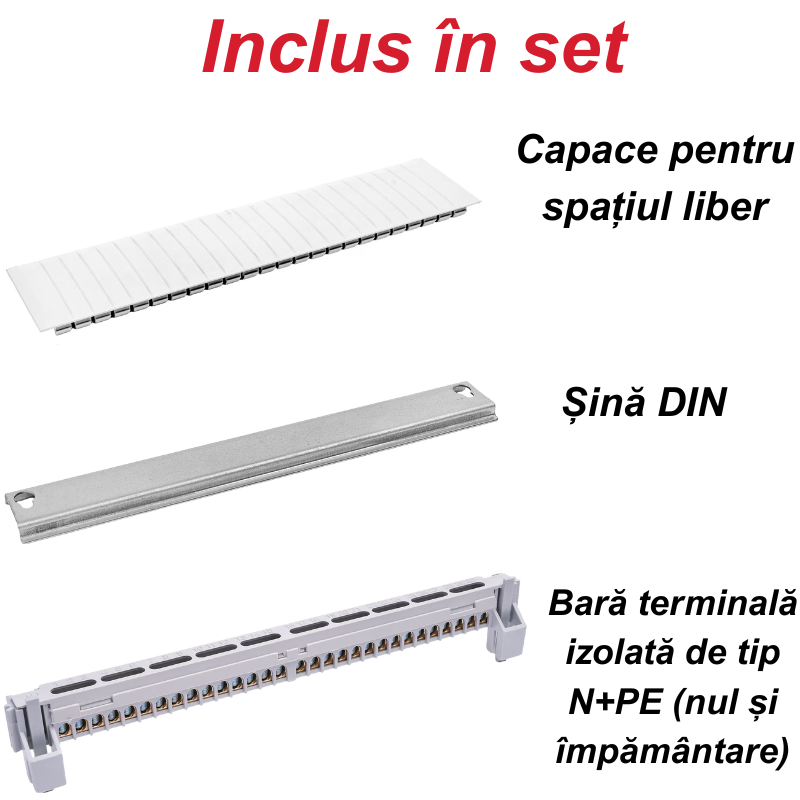

Echipare inclusa

Produsul este livrat cu:

  • Capac pentru spatiul gol, din PP, RAL 7035/RAL 9003;

  • Cleme izolate standard, cu material auto-stingator si test cu fir incandescent de 960°C;

  • 4 sine DIN, disponibile in dimensiunea necesara.

Cofretul este neechipat cu sigurante, disjunctoare sau alte aparate modulare, acestea fiind achizitionate si instalate separat, in functie de configuratia instalatiei.
